RSE Solutions Inc.

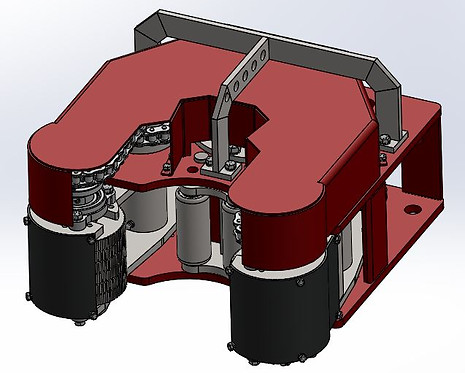

SP-1750 COMPACT SPINNER
PATENT PENDING
Specifications:
Tubular size: 7 1/4" - 2 1/2"
Clamping force: 8,350 lbf (37kN) @ 2300 psi
Spinning force: 4,450 lbf (19.8 kN)
Weight 355 lb (161 kg)
Recommended working pressure: 2500 psi
Recomended flow: 16 gpm
CTPW-750 Breaker
Specifications:
Tubular size: 3 1/2" - 7"
Tubular size with spacer 2 3/8" - 6 1/8"
Clamping force 52,560lbf (233 kN)
Maximum breaking torque: 27,270 lb-ft (37 kNm)
Maximum make up torque: 20,450 lb-ft (27 kNm)
Maximum rotation angle: 16 degrees (make or break)
Weight 289 lbs (131 kg)
Recommended working pressure: 2500 psi
Recomended flow: 16 gpm
CTPW-1075 Breaker
Specifications:
Tubular size: 5 1/2" - 10 3/4"
Tubular size with spacer 2 3/8" - 6 1/2"
Clamping force 82,172 lbf (365.5 kN)
Maximum breaking torque: 50,250 lb-ft (68 kNm)
Maximum make up torque: 43,000 lb-ft (58.3 kNm)
Maximum rotation angle: 30 degrees
Weight 620 lbs (280 kg)
Maximum working pressure: 3000 psi
Recomended flow: 20 gpm
SCSR-663 Scissor Style Power Wrench
Specifications:
Tubular size: 2 3/8" - 6 5/8"
Clamping force 36,500 lbf (166 kN)
Maximum breaking torque: 20,500 lb-ft (42 kNm)
Maximum make up torque: 17,500 lb-ft (35 kNm)
Maximum rotation angle: 20 degrees
Weight 246 lbs (112 kg)
Maximum working pressure: 3000 psi
Recomended flow: 8 gpm
RodBot
(Hands-Free Pipe Handling)
